    MultiTherm™ Heating/Cooling Vortexer

    • Temperature control from 0 to 100°C
    • Exchangeable blocks, for tube sizes 0.2 to 50 ml
    • Precision contoured wells for uniform thermal transfer
    • Two models: Heat/Cool or Heat only
    • Sequence link function for linking or repeating programs (HC model only)
    • Blocks sold separately

    REQUEST A QUOTE

    Item: Description: Price:
    H5000-HC* MultiTherm shaker with heating & cooling $2,629.00
    H5000-H* MultiTherm shaker with heating only $1,999.00
    Available Blocks (Sold Separately)
    H5000-02 Block, 96 x 0.2ml or 1 x PCR plate $325.00
    H5000-05 Block, 54 x 0.5ml $273.50
    H5000-CMB Block, combination, 15x0.5ml & 20 x 1.5ml $273.50
    H5000-15 Block,35 x 1.5ml $273.50
    H5000-20 Block, 35 x 2.0ml $273.50
    H5000-12* Block, 24 x 12mm (Max. speed: 1200 rpm) $385.00
    H5000-150* Block, 12 x 15ml (Max speed: 750 rpm) $385.00
    H5000-500* Block, 6 x 50ml (Max. Speed: 750 rpm) $385.00
    H5000-MP* Block, 1 x microplate (Ambient -10° to 80°C) $385.00
    H5000-DWMP* Block, 1 x microplate, deepwell (Ambient -10° to 80°C) $385.00
    H5000-WB* Block, multipurpose for water, beads, etc. (4x2.6x1") $385.00

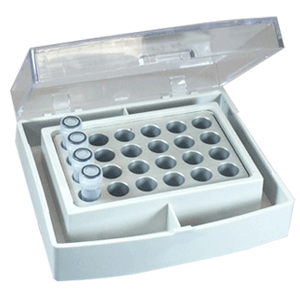

    H5000-1232 Block, 24 x 2ml AutoSample (HPLC) vials (12x32mm) $385.00
    H5000-025 Block, 48 x 250ul vial insert (6x30mm) $385.00
    H5000-CU Block, custom drilled, for tubes. vials up to 40mm tall $639.00
    H5000-5MT Block, 15 x 5 ml centrifuge tubes (conical) $385.00
    * The larger mass of this block results in a temperature range of ambient -10° to 100°C

    Links and Documents

  • MultiTherm™ product literaturee

    • Specifications


    Speed: Variable, 200 to 1500 rpm (or off)
    Orbit: 3mm
    Temp. Range (H5000-HC): Ambient -20 to 100°C
    Temp. Range (H5000-H): Ambient +5 to 100°C
    Temperature Increment: 0.1°C
    Temp. Accuracy: +/- 1.0°C
    Capacity: Per Selected Block
    Speed Increment: 10 rpm
    Heating Rate: 5.0°C per. min.
    Cooling Rate: 2.5°C per. min.
    Dimensions: (w x d x h) 8.25 x 11.5 x 8.25 in. / 21 x 29 x 21 cm
    Weight: 18 lbs (8kg)
    Timer: 1 min. to 99 hours 99min. / continuous
    Electrical: 115 or 230V, 50-60Hz, 500W
    Warranty: 2 Years

    The MultiTherm shaker is a temperature controlled vortexer, useful for a variety of molecular biology applications. Despite its modest 8 x 11 in. footprint, all popular tubes and plates are compatible, including as many as six 50 ml tubes. Speed, time and temperature settings are continuously visible on the LCD, simultaneously showing both actual and selected values. Integral over-temperature control ensures long life, safety and sample integrity.
